Did you know that it is possible to pass an environment-specific Azure Key Vault URL value and Storage Account base URL dynamically using a single global parameter in Azure Data Factory?
Allow me to explain. The problem was that in ADF pipelines, a static Key Vault URL and a Storage Account URL were not a great idea. To make the ADF pipeline deployment environment independent, there had to be a way to reference these URLs in a not-so-hardcoded or static fashion.
In my blog today, I am going to take you through the process of configuring a Key Vault URL and a Storage Account Base URL dynamically using a single global parameter in Azure Data Factory.
How to pass an environment-specific Azure Key Vault URL value and Storage Account base URL dynamically using a single global parameter in Azure Data Factory:
The steps you need to take to pass an environment-specific Azure Key Vault URL value and Storage Account base URL dynamically using a single global parameter in Azure Data Factory are as follows:

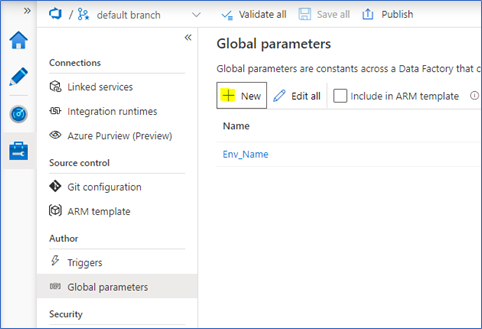

Create a new global parameter by clicking on +New from Data factory -> Manage -> Global parameters.

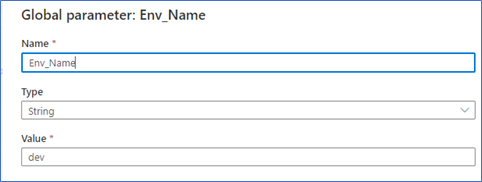

Add the name, data type and value for the newly added global parameter and click on the Save button.

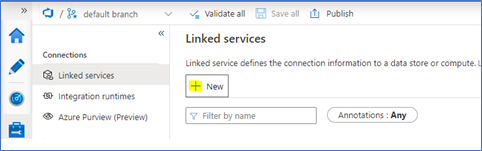

Then create a new Azure Key vault linked service by clicking +New or you can also edit an existing Linked Service.

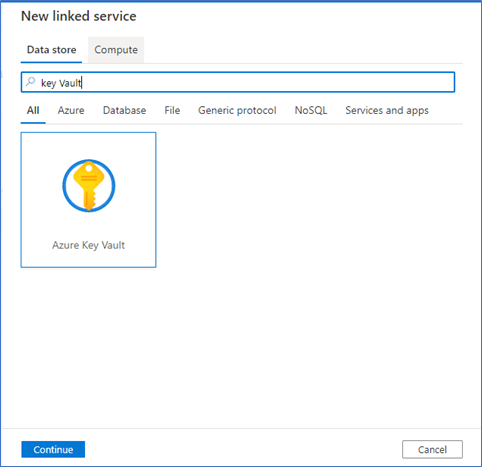

Search for ‘Key Vault’ and click on the Continue button.

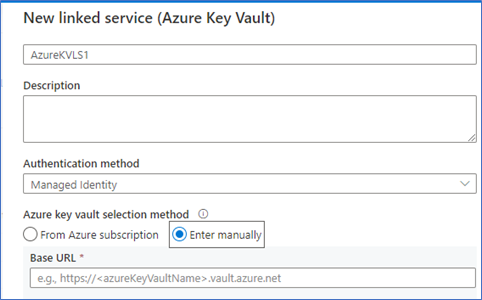

Create the linked service with a suitable name and select the Azure key vault selection method as ‘Enter manually’.

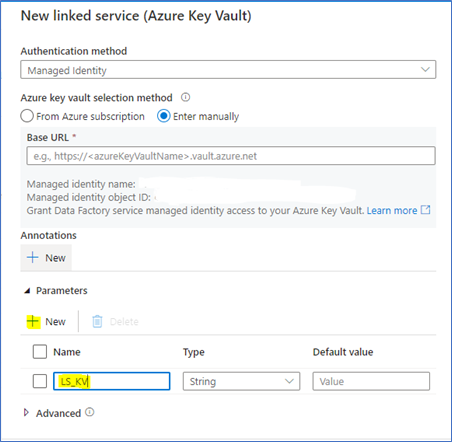

As you have to pass a dynamic URL in Step 5, scroll down and click on +New to create a new parameter.

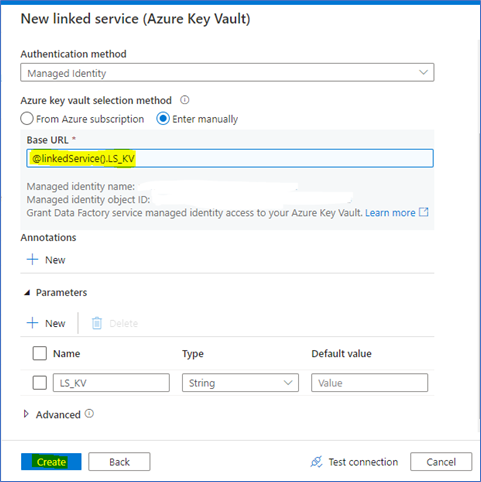

Then click on the Base URL which will enable the ‘Add dynamic content’ option. Click on it to link the parameter (created in Step 6) with the Base URL.

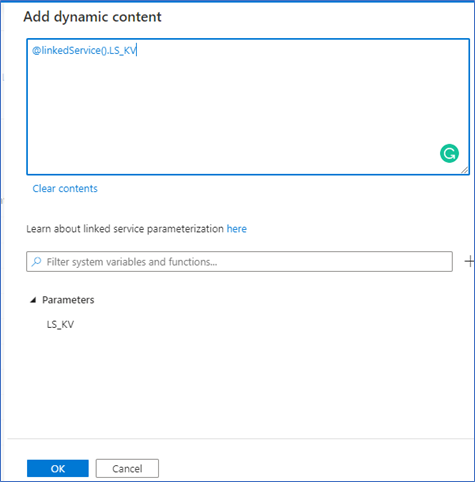

Select the LS_KV parameter in the parameters list to add it in the dynamic content space and click on the OK button.
Then click on the Create button to create the linked service.

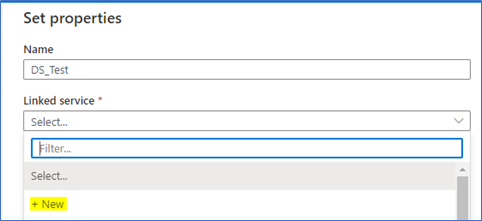

Now create a dataset with its own linked service by clicking the +New option as shown below.

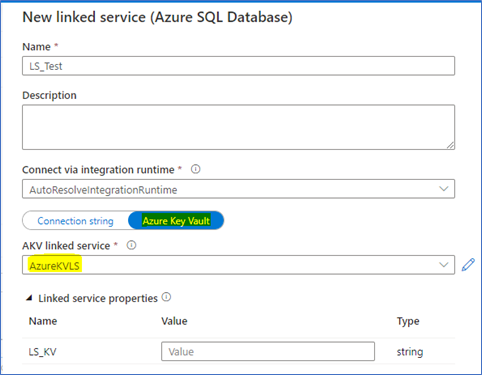

Now name the linked service and select the existing Azure key vault service ‘AzureKVLS’ (as created in Steps 1 to 9) from the AKV Linked Service dropdown as shown below.

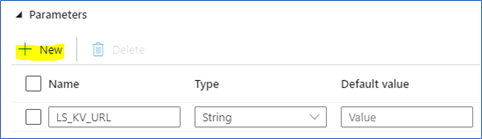

Then scroll down and create the new parameter with the name ‘LS_KV_URL’ on the linked Service LS_Test.

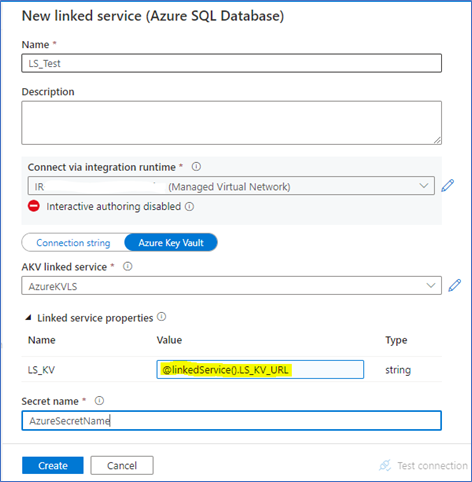

Now map the newly created parameter i.e., LS_KV_URL to LS_KV by clicking Adddynamic content under the ‘Value’ option of LS_KV linked service. Then click on the Create button to create the linked service.

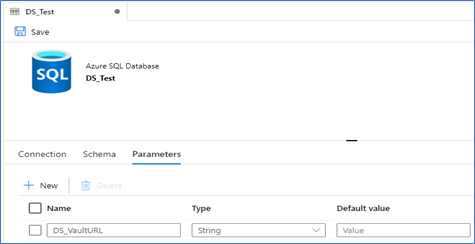

Now go back to the dataset configuration properties and click on the Parameters tab. After that, add the parameter on the dataset with an appropriate name i.e. DS_VaultURL as shown below.

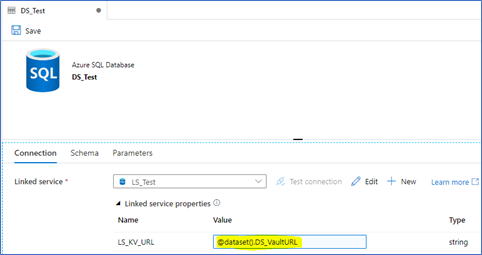

Now click on the Connection tab of the dataset configuration. Map the parameter ‘DS_VaultURL’ of the dataset with ‘LS_KV_URL’ parameter of the linked service by clicking the Adddynamic content under the ‘Value’ option of Linked service properties as shown below.

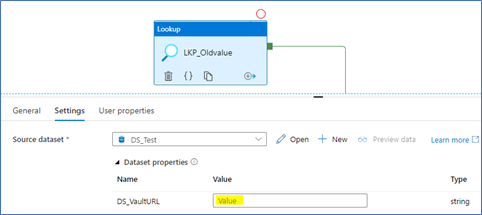

Now in the pipeline, when you use the same dataset (DS_Test), you need to map the Vault URL to the dataset parameter (DS_VaultURL).

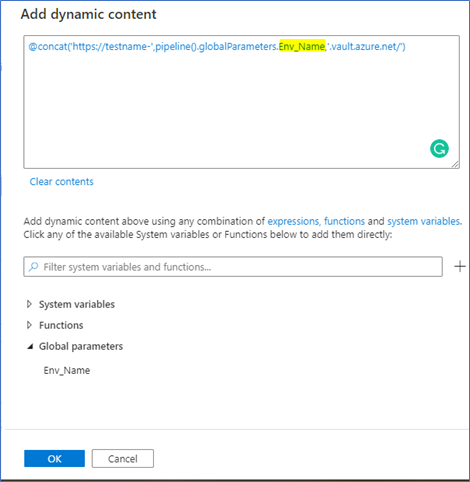

To do this, click in the box under ‘Value’ option of Dataset properties as shown above and click on Add dynamic content to create the dynamic Azure key vault URL using a Global parameter value.
Click on the OK button to save the content.
Now your pipeline is ready to run. You can set ‘env_name’ as ‘dev’, ‘test’ or ‘prod’ as per the data factory environment to use the Azure key vault URL dynamically in the linked services.
Similarly, we can also set a Storage Account URL dynamic for the datasets of a data lake. The steps are as follows:

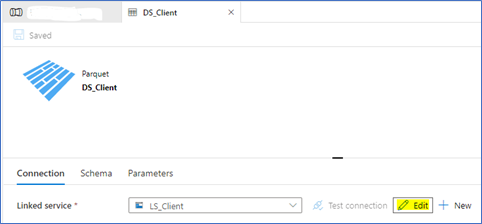

Edit the existing data lake dataset (in our case it is DS_Client) and edit the linked service (LS_Client) used in it.

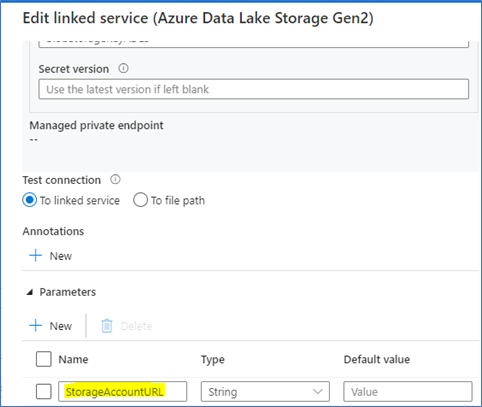

Now create a new parameter named ‘StorageAccountURL’ by clicking the +New button.

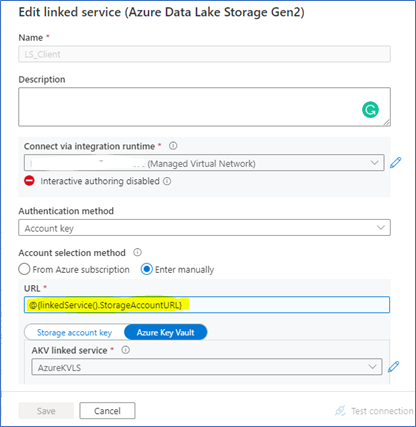

Now to make a URL of the linked service (LS_Client) dynamic, map the newly created parameter StorageAccountURL in the URL textbox under the Account Selection method property by clicking on the Add dynamic content option and then the Save button.

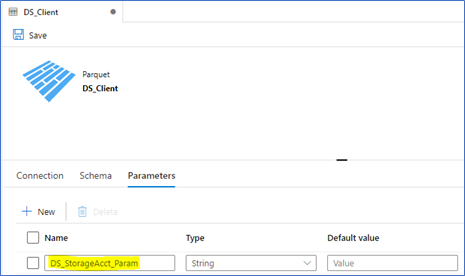

Now go back to the dataset configuration properties and click on the Parameters tab to create the parameter ‘DS_StorageAcct_Param’ which will be linked with the Linked Service parameter ‘StorageAccountURL’ (as created in Step 2).

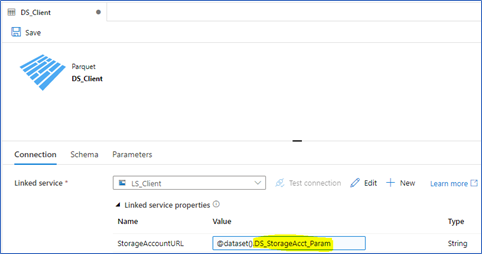

Now click on the Connection tab of the dataset and map the parameter ‘DS_STorageAcct_Param’ with the parameter StorageAccountURL by clicking on the Add dynamic content option under the Value option of Linked service properties.

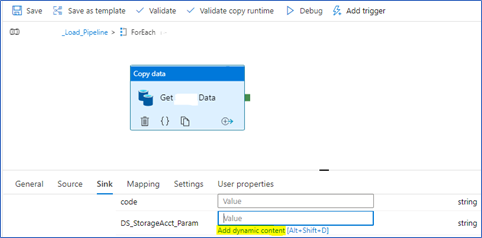

Now go back to the pipeline and select the activity where we have used the dataset ‘DS_Client’. Then click on the Add dynamic content option for the parameter ‘DS_StorageAcct_Param’, where we will specify the value in the next step.

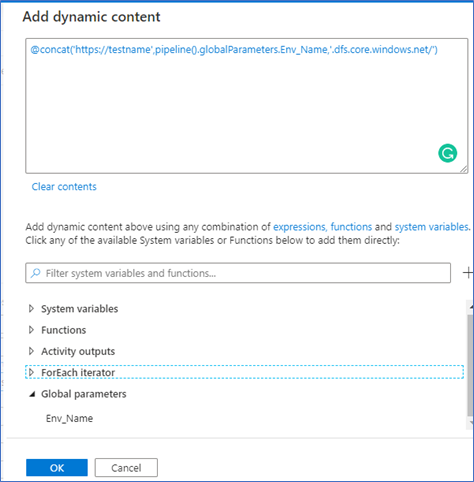

Generate the Storage Account URL string dynamically using the Global parameter value and click on the OK button to save the changes.
Now, the Pipeline is ready to run with a dynamic storage account URL to connect the pipeline with the data lake dataset.
