Deploying Databricks on Azure is crucial for organizations to harness the potential of data analytics and machine learning. Yet, the current manual, time-consuming deployment process often leads to errors and inconsistencies, impacting productivity and risking deployment failures.
To overcome these challenges, an efficient and automated approach is essential for provisioning and managing Databricks resources on Azure. Thanks to Terraform, a popular open-source infrastructure-as-a-code tool that helps in safe, predictable and efficient provisioning and management of infrastructure resources!

Note: Read how we helped an oil & gas company in meeting compliance standards with Azure.

This blog will introduce you to Terraform and its benefits. Additionally, you’ll discover the steps needed to deploy Azure Databricks using Terraform.

What is Terraform and how does it make a difference?

Terraform, developed by HashiCorp, allows you to define infrastructure as code. This means that you can write and control the version of your infrastructure configurations.

This approach offers several advantages, including repeatability, consistency, and the ability to track changes over time.

Clear with the basics? Great!

Learn how migrating your digital assets to Azure can secure your business in 2024.

Download Checklist

Now, I’ll guide you through the process of deploying Azure Databricks using Terraform so that you can streamline your infrastructure provisioning and management with ease.

Deploying Azure Databricks with Terraform: Step-by-Step Guide

The following steps are necessary for the deployment process:

1. Installation of Hashicorp Terraform:

First, start by installing Hashicorp Terraform for Windows.

2.Authentication to azure cloud from Terraform (Authenticating using a Service Principal with a Client Secret):

To authenticate using a Service Principal with a client secret, you need to create a new file named main.tf and include the following information:

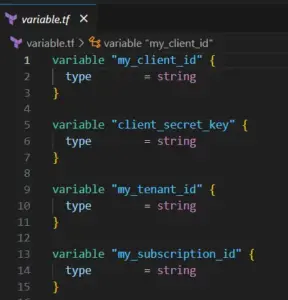

Next, create another new file with name variable.tf to declare the variables:

Also create a new file databricks.auto.tfvars and assign the values to the above variables in that file.

Note: Replace the values of client_id, client_secret, tenant_id and subscription_id with actual values in the code given below:

my_client_id = "0000-0000-0000-0000-0000-00000"

client_secret_key = "0000-0000-0000-0000-0000-00000"

my_tenant_id = "0000-0000-0000-0000-0000-00000"

my_subscription_id = "0000-0000-0000-0000-0000-00000"

3. Providing the application with permissions to manage resources in your Azure Subscription:

Create an application in Azure Active Directory (Microsoft Entra ID -> App registrations) and assign the contributor role to the application.

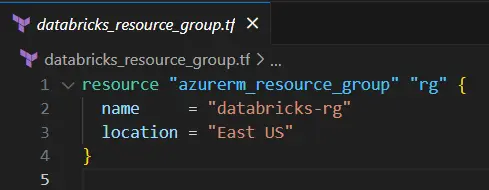

4. Create a new Terraform file for deploying resource group to Microsoft azure:

Here, you need to create a Terraform file with the name Resource_group.tf:

5. Create a Terraform file for deploying Databricks workspace to Microsoft azure:

Use this code to create the file:

6. Create a Terraform file for deploying Databricks Cluster to Microsoft azure:

Use this code to create the file:

7. Create a Terraform file for deploying Databricks Notebook to Microsoft azure:

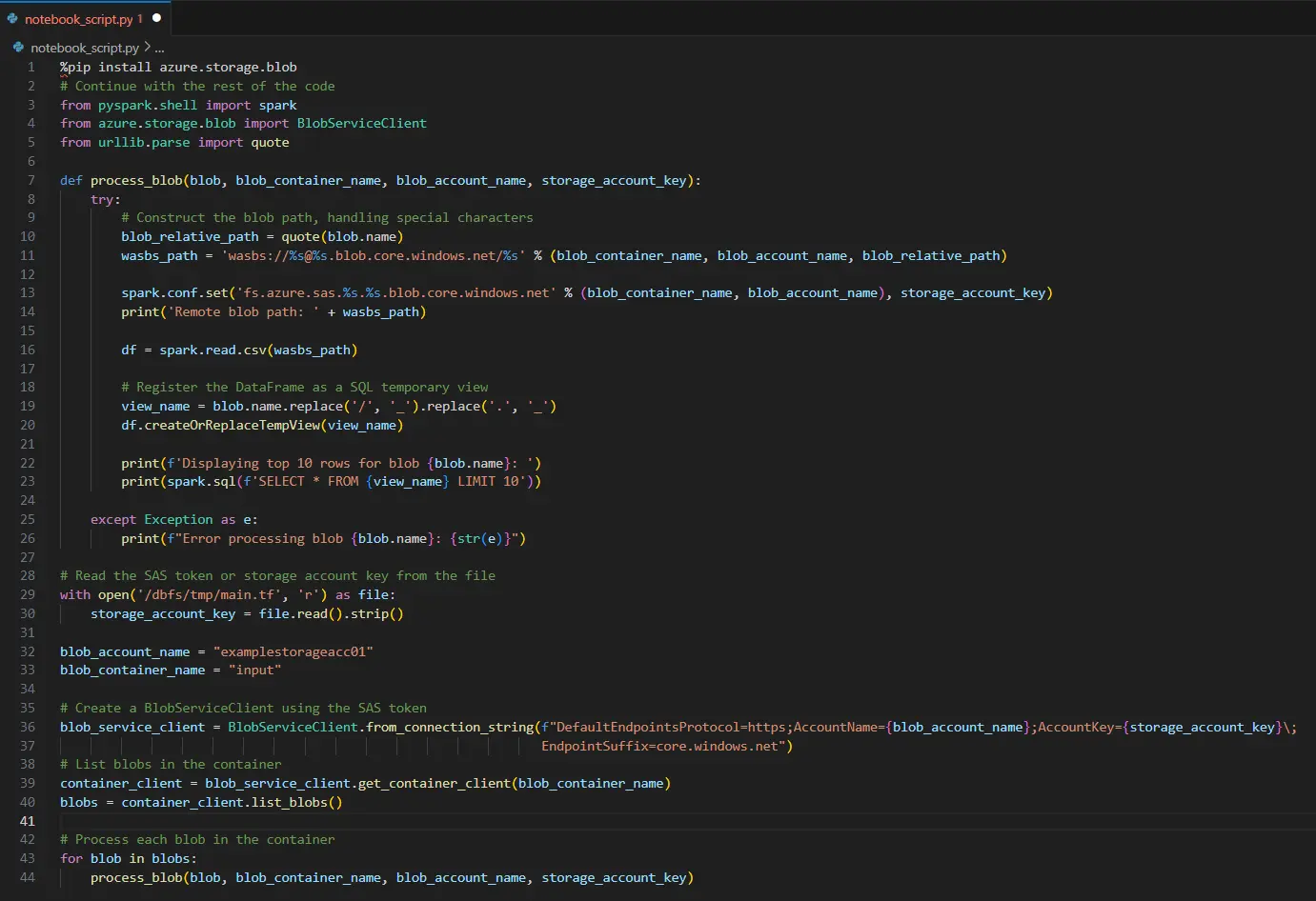

• First create a notebook_blob_storage.py file and add the following code in that file.
• This code snippet is designed to extract data from a file stored in an Azure Blob Storage container. Additionally, we can incorporate code to apply various transformations and actions within this notebook.

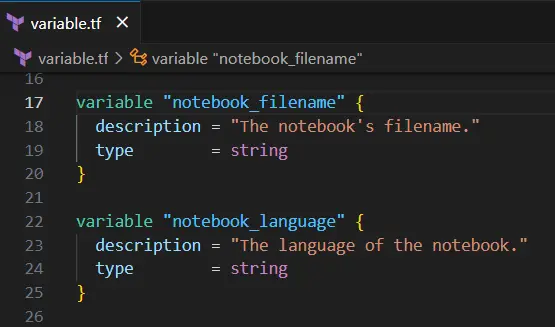

• Add the following variables into the variable.tf file which you have created earlier:

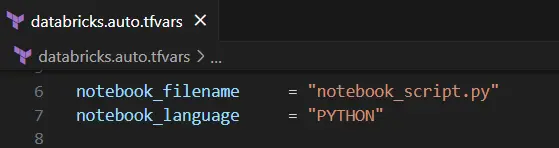

• Also assign the values to the above variables in databricks.auto.tfvars file, which you have created earlier:

Now, this will be the last step to deploy Databricks notebook.

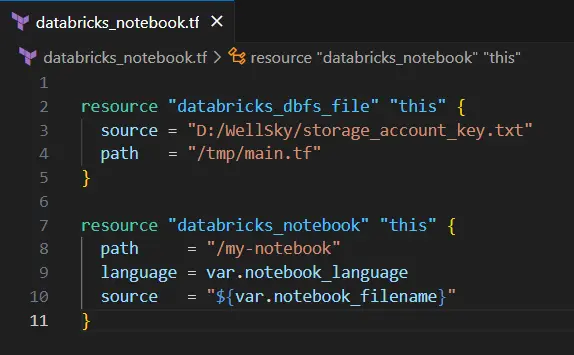

To do so, create a new Terraform file with the name databricks_notebook.tf:

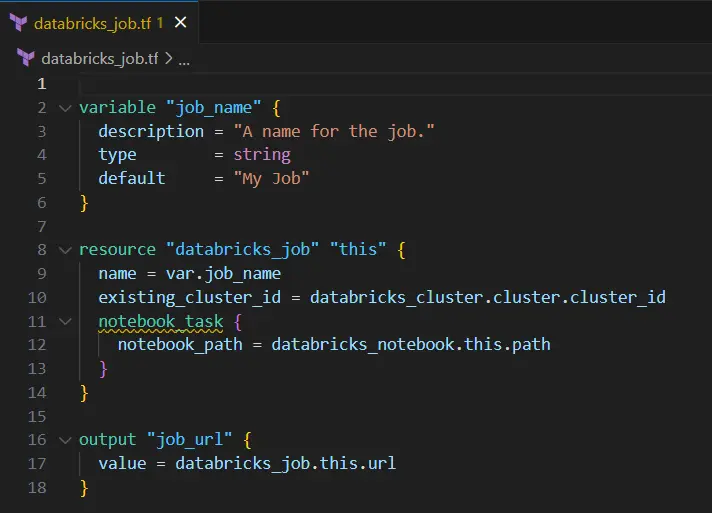

8. Create a Terraform file for deploying Databricks job to Microsoft azure:

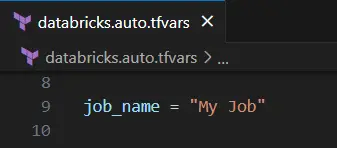

Then add a new variable in databricks.auto.tfvars:

Bonus Read:

Keep a note of these Terraform commands:

• terraform init: This command prepares the working directory for Terraform, including backend initialization, child module installation, and plugin installation.
• terraform plan: The plan command generates an execution plan outlining the actions Terraform will take without performing those actions.
• terraform apply: This command creates or updates infrastructure based on the configuration files. It typically generates a plan first, which needs to be approved before applying the changes.
• terraform destroy: The destroy command removes the infrastructure created by Terraform apply, effectively deleting the resources provisioned.

9. Automate the deployment process using Python script:

You can use this Python script to automate the complete azure databricks deployment process using Terraform:

By the end of these 9 steps, you’ll be able to deploy Azure Databricks successfully with Terraform.

If you’re now curious about the cost structure of Databricks and Terraform, take a moment to read the following section to familiarize yourself with it!

Pricing: Databricks and Terraform

1. Databricks Standard Tier Pricing:

The pricing for Databricks can vary based on your specific use case and the type of instances you choose. In the above case, we conducted a proof of concept (POC) and did not incur any costs. However, based on utilization, the cost may be as follows:

https://azure.microsoft.com/en-in/pricing/details/databricks/

2. Terraform Pricing Overview:

• Deploying Databricks on cloud infrastructure using services like Azure Databricks may involve costs related to virtual machines, storage, data processing, networking, and additional services utilized within the cloud environment.
• On the other hand, using a managed service like Azure Databricks may involve costs for the service itself, which typically includes a combination of compute resources, storage, data processing, management features, and support from the provider.

Given below are tier-wise specifications:

• Free Tier: Terraform offers a free tier that allows users to manage up to 500 resources per month at no cost.
• Standard Tier: Beyond the free tier, users are charged at a rate of $0.00014 per hour per resource.
• Plus and Enterprise Tiers: Pricing for the plus and enterprise tiers is not provided publicly and requires contacting the sales team.

I hope I have provided all the necessary details for you to navigate across the Terraform terrain seamlessly.

Note: While deploying Azure Databricks with Terraform, it’s important to note some limitations. Terraform offers limited resource support for Azure Databricks compared to other Azure services, and certain features or configurations may not be fully supported, requiring alternative approaches.

So, its effectiveness in deploying Azure Databricks can vary depending on specific requirements and use cases. It is advised to assess your needs and then act based on them.
