Angular and Custom WebSocket Integration: Build a real-time To-Do List App

Real-time communication to apps can be a thrilling experience for a user but is it as easy as it sounds? That is a giant I decided to tackle in this blog of mine.

This blog lets you in on building a real-time To-Do List application using Angular for the front-end and a custom WebSocket server for real-time communication.

This concept, that I am all set to write about, can be used to implement the functionality according to your need. I have used to-do app as an example.

The beauty of these applications lies in the fact that they allow multiple users to collaborate and view to-do list updates in real-time.

First, let’s explore the ‘Why’ angle.

Why Real-Time WebSocket Integration in Web Applications?

6. Enhanced User Engagement: Real-time features can lead to increased user engagement. Whether it’s a collaborative whiteboard application, a live sports score app, or an auction website, users are more likely to stay engaged when they see dynamic content and instant updates.

7. Synchronization Across Devices: WebSocket enables synchronization of data across multiple devices. For instance, if a user adds a to-do item on their laptop, it will instantly appear on their smartphone as well. This synchronization simplifies user interactions and improves the overall user experience.

8. Reduced Server Overhead: WebSocket’s persistent connection model eliminates the need for frequent handshakes, reducing the overhead of establishing and tearing down connections for each request. This efficiency results in better server performance and scalability.

9. Real-Time Feedback: In applications where user actions trigger events, such as online quizzes or live voting systems, WebSocket allows immediate feedback to the users. Real-time feedback can enhance user satisfaction and engagement.

In conclusion, real-time WebSocket integration offers a plethora of advantages that make web applications more interactive, responsive, and efficient. From real-time collaboration to reduced latency and enhanced user engagement, WebSocket provides a powerful mechanism for delivering dynamic and immersive user experiences.

As web applications continue to evolve, WebSocket will play a vital role in building modern, interactive, and user-centric solutions.

Building Prerequisites

Before you get the ball rolling, make sure you have the following:

• Node.js installed on your machine
• Angular CLI installed globally ( npm install -g @angular/cli )

Now, it is – get, set, build time!

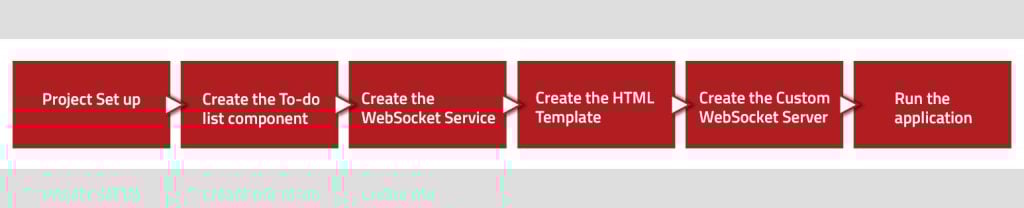

My diagram below is going to have all the steps at a glance, but don’t stop there, read on to get all the details.

Step 1: Set up the Angular Project

1. Run the following command in your terminal to create a new Angular project:

ng new todo-list-app

2. Change into the project directory:

cd todo-list-app

Step 2: Create the To-Do List Component

1. Generate a new component called TodoListComponent by running the following command:

ng generate component todo-list

2. Open the todo-list.component.ts file and update it with the following code:

import { Component, OnInit } from '@angular/core';
import { webSocket } from 'rxjs/webSocket';
import { WebSocketService } from 'src/app/web-socket.service';
@Component({
selector: 'app-todo-list',
templateUrl: './todo-list.component.html',
styleUrls: ['./todo-list.component.css']
})
export class TodoListComponent implements OnInit {
todos: string[] = [];
newTodo: string = '';
isConnected: boolean = false;
constructor(private webSocketService: WebSocketService) {
this.todos = this.webSocketService.getTodoArr();
}
ngOnInit() {
this.webSocketService.socket$ = webSocket('ws://localhost:8080'); // Establish WebSocket connection
// Subscribe to the incoming messages from the WebSocket server
this.webSocketService.socket$.subscribe(
(message) => {
this.isConnected = true;
var arrTodo: string [] = [];
message.forEach((element:any) => {
arrTodo.push(element.replace("\"", "").replace("\"", ""))
});
console.log(arrTodo);
this.todos = arrTodo;
},
(error) => console.error('WebSocket error:', error),
() => {
this.isConnected = false;
console.log('WebSocket connection closed');
}
);
}
addTodo() {
if (this.newTodo.trim() !== '') {
this.webSocketService.send(this.newTodo); // Send new to-do item to the server
this.newTodo = '';
}
}
resetList() {
this.webSocketService.send('reset!*(@h9890138ch1908'); // Send a special message to reset the to-do list
}
connectWebSocket() {
// Establish WebSocket connection
this.webSocketService.socket$ = webSocket('ws://localhost:8080');
this.webSocketService.socket$.subscribe(
(message) => {
this.isConnected = true;
var arrTodo: string [] = [];
message.forEach((element:any) => {
arrTodo.push(element.replace("\"", "").replace("\"", ""))
});
console.log(arrTodo);
this.todos = arrTodo;
},
(error) => console.error('WebSocket error:', error),
() => {
this.isConnected = false;
console.log('WebSocket connection closed');
}
);
}
disconnectWebSocket() {
this.webSocketService.disconnect(); // Close WebSocket connection
}
isWebSocketConnected(): boolean {
return this.webSocketService.isConnected(); // Check if WebSocket connection is established
}
refresh() {
this.todos = this.webSocketService.getTodoArr(); // Update the to-do list by retrieving it from the WebSocket service
}
}

Here’s a breakdown of the code:

• The TodoListComponent class represents the component responsible for displaying and managing the to-do list.
• The todos property holds the array of to-do items.
• The newTodo property stores the value of the new to-do item input field.
• The isConnected property indicates whether the WebSocket connection is established.
• The constructor injects an instance of the WebSocketService to communicate with the WebSocket server.
• The ngOnInit lifecycle hook is called when the component is initialized. It establishes a WebSocket connection and subscribes to incoming messages.
• The addTodo method is triggered when the user clicks the “Add” button. It sends the new to-do item to the server.
• The resetList method is triggered when the user clicks the “Reset” button. It sends a special message to the server to reset the to-do list.
• The connectWebSocket method is triggered when the user clicks the “Connect” button. It establishes a WebSocket connection.
• The disconnectWebSocket method is triggered when the user clicks the “Disconnect” button. It closes the WebSocket connection.
• The isWebSocketConnected method returns the status of the WebSocket connection.
• The refresh method updates the to-do list by retrieving it from the WebSocket service.

Step 3: Create the WebSocket Service

1. Generate a new service called WebSocketService by running the following command:

ng generate service web-socket

2. Open the web-socket.service.ts file and update it with the following code:

import { Injectable } from '@angular/core';
import { Observable } from 'rxjs';
import { map } from 'rxjs/operators';
import { webSocket, WebSocketSubject } from 'rxjs/webSocket';
@Injectable({
providedIn: 'root'
})
export class WebSocketService {
public socket$!: WebSocketSubject<any>;
private todoArr: string[] = [];
constructor() {
}
connect() {
this.socket$ = webSocket('ws://localhost:8080'); // Replace with your WebSocket server URL
}
disconnect() {
this.socket$.complete();
}
isConnected(): boolean {
return (this.socket$ === null ? false : !this.socket$.closed);
}
onMessage(): Observable<any> {
return this.socket$!.asObservable().pipe(
map(message => message)
);
}
send(message: any) {
this.socket$.next(message);
}
getTodoArr(): string[] {
return this.todoArr;
}
}

Here’s a breakdown of the code:

• The WebSocketService class provides methods to establish, manage, and interact with the WebSocket connection.
• The socket$ property represents the WebSocket subject.
• The todoArr property holds the array of to-do items received from the server.
• The connect method establishes a WebSocket connection to the specified URL.
• The disconnect method closes the WebSocket connection.
• The isConnected method checks if the WebSocket connection is established.
• The onMessage method returns an observable that emits incoming messages from the WebSocket server.
• The send method sends a message to the WebSocket server.
• The getTodoArr method returns the array of to-do items.

Step 4: Create the HTML Template

1. Open the todo-list.component.html file and update it with the following code:

<h1>Real-time To-Do List</h1>
<ul>
<li *ngFor="let todo of todos">{{ todo }}</li>
</ul>
<input [(ngModel)]="newTodo" placeholder="Add a new todo">
<button (click)="addTodo()">Add</button>
<button (click)="connectWebSocket()" [disabled]="isConnected">Connect</button>
<button (click)="disconnectWebSocket()" [disabled]="!isConnected">Disconnect</button>
<button (click)="resetList()">Reset</button>

Step 5: Create the Custom WebSocket Server

1. Create a new file called websocket-server.js in the root directory of your project and update it with the following code:

const WebSocket = require('ws');
const port = 8080; // Set the desired port
const wss = new WebSocket.Server({ port });
// Shared state of the to-do list
let todos = [];
wss.on('listening', () => {
console.log(`WebSocket server is listening on port ${port}`);
});
wss.on('connection', ws => {
// Send the current to-do list to the newly connected client
ws.send(JSON.stringify(todos));
ws.on('message', message => {
const receivedMessage = message.toString(); // Convert the message to a string
console.log(receivedMessage);
if (receivedMessage === '\"reset!*(@h9890138ch1908\"') {
// Reset the to-do list
todos = [];
} else {
// Add the new to-do item to the shared state
todos.push(receivedMessage);
}
// Broadcast the updated to-do list to all connected clients
wss.clients.forEach(client => {
client.send(JSON.stringify(todos));
});
});
});

Here’s a breakdown of the code:

• The WebSocket module is imported to create a WebSocket server.
• The port variable specifies the desired port number for the WebSocket server.
• The wss variable creates a WebSocket server instance on the specified port.
• The todos array represents the shared state of the to-do list.
• The listening event is triggered when the WebSocket server starts listening on the specified port.
• The connection event is triggered when a new client connects to the WebSocket server.
• When a client connects, the current to-do list is sent to the client.
• The message event is triggered when a message is received from a client.
• The received message is converted to a string.
• If the message is a special reset message, the to-do list is cleared.
• Otherwise, the new to-do item is added to the shared state.
• The updated to-do list is broadcast to all connected clients.

Step 6: Run the Application

1. Open a new terminal window and navigate to the root directory of your project.

2. Start the custom WebSocket server by running the following command:

node websocket-server.js

You should see the message displayed “WebSocket server is listening on port 8080” in the console.

3. Open another terminal window and navigate to the root directory of your project.

4. Run the following command to start the Angular development server.

ng serve

5. Open your web browser and navigate to http://localhost:4200 to see the real-time To-Do List application in action.

That’s it! You have successfully built a real-time To-Do List application using Angular and a custom WebSocket server. Now, users can collaborate and see updates to the to-do list in real-time.

Deployment

This is a completely optional step, but personally I think it is a good-to-have one. So, I decided to list down some action items for you in case you decide to take that route.

Prerequisites

• GitHub account.
• Vercel account.
• Glitch account.

Step 1: Hosting a WebSocket server

First, we will host a WebSocket server on Glitch.

1. LogIn to your Glitch account and navigate to dashboard.
2. Click “New Project” and select “glitch-hello-node” template.
3. In your Glitch project files open server.js file and replace all the code with websocket-server.js that we have created earlier.
4. Glitch will build and deploy your code automatically.

Step 2: Hosting the Angular Application

Next, we will host our Angular application on Vercel account.

1. Replace “ws://localhost:8080” in your project with “wss://{your-glitch-project-name}.glitch.me/”.
2. Upload your entire project in your github repository.
3. Navigate to Vercel and use SignIn with GitHub option.
4. On Vercel dashboard select “Add New Project” option and import the repository that you created for this project.
5. After that in configuration window, keep everything as default and click on Deploy button. Vercel will automatically build and deploy your project with multiple environments.

So, with the optional steps also chalked out, I believe you are in a good position to take a crack at it by yourself.
