In our technology-focused world, SAP ERP systems are very popular. Irrespective of the size or industry, businesses can reap the benefits of SAP. As you may be aware, it is essential to automate data extraction from SAP. If the idea sounds slightly daunting, it doesn’t need to be.

Remote Function Call (RFC) is the standard SAP interface for communication between SAP systems and other systems, so RFC calls function to be executed in a remote system. There are multiple ways to be developed to extract data from SAP tables. This blog covers the following two approaches to extract data from SAP ECC:

  • Python using the PyRFC package
  • Azure Data Factory with the SAP connector for .Net

I’m going to share the steps to use PyRFC and SAP NetWeaver SDK. Let’s get started!

Steps to download the SAP NetWeaver Remote Function Call System Development Kit

SAP NW RFC SDK is the abbreviation for SAP NetWeaver Remote Function Call System Development Kit. This lets you manage the RFCs.

1. Go to the SAP Service Marketplace: http://service.sap.com/support

2. Enter your SAP Service Marketplace username and password. The SAP Support Portal page appears. Here is the screenshot for your reference.

Data Extraction from SAP 1 | Nitor Infotech

Data Extraction from SAP 2 | Nitor Infotech

3. Click the ‘Download Software’ icon.

Data Extraction from SAP 3 | Nitor Infotech

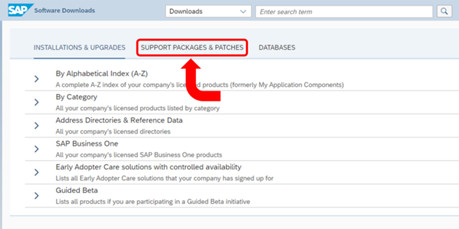

4. Click the ‘Support Packages & Patches’ tab.

Data Extraction from SAP 4 | Nitor Infotech

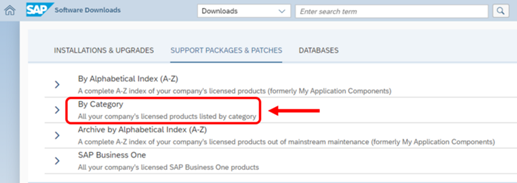

5. Click ‘By Category’ in the list.

Data Extraction from SAP 5 | Nitor Infotech

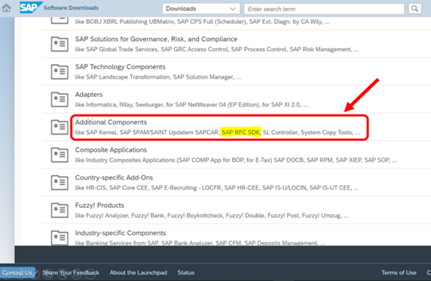

6. Click ‘Additional Components’ in the list.

Data Extraction from SAP 6 | Nitor Infotech

7. Click ‘SAP NW RFC SDK’ in the list.

Data Extraction from SAP 7 | Nitor Infotech

8. Click on the most recent version of SAP NW RFC SDK.

Data Extraction from SAP 8 | Nitor Infotech

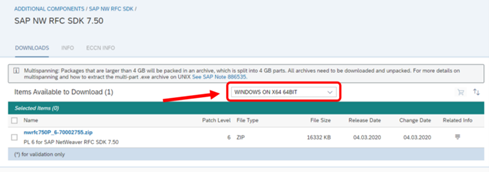

9. Select the operating system for which you want to download.

Data Extraction from SAP 9 | Nitor Infotech

10. Click the hyperlinked .zip file to download libraries.

Data Extraction from SAP 10 | Nitor Infotech

11. Extract the files and folders that are inside the .zip to your SAP folder.

Data Extraction from SAP 11 | Nitor Infotech

12. Install PyRFC Python package with the following commands –

pip install pyrfc

pip install pynwrfc

As we have done with pre-requisites, we can start extracting data from SAP tables using Python code.

Extract data from SAP tables and upload the data on Azure Blob Storage as CSV files using the following code snippet.

Import requires modules as mentioned below –

from azure.storage.blob import BlobServiceClient, BlobClient

from azure.storage.blob import ContentSettings, ContainerClient

from cryptography.fernet import Fernet

import pandas as pd

import json

from pyrfc import Connection

from datetime import datetime

import pyodbc

Read the SAP connection details from the configuration file kept in Blob Storage.

#Read connection details for configuration table

storage_end_point = "https://xxxxx.blob.core.windows.net"

storage_account_key = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

storage_container_name = "configurations"

blob_name = "config_connection.json"

key = "key.txt"

Establish the connectivity with Azure Blob Storage to read the configuration file.

blob_service_client_instance = BlobServiceClient(account_url= storage_end_point, credential =storage_account_key)

container = blob_service_client_instance.get_container_client(storage_container_name)

blobs = container.list_blobs(name_starts_with=blob_name)

blob = [i for i in blobs][0]

key_blobs = container.list_blobs(name_starts_with=key)

key = [i for i in key_blobs][0]

result = container.get_blob_client(blob).download_blob().readall()

result_json = json.loads(result.decode('utf8').replace("'",'"'))

Get SAP Server connection details from the configuration file.

print("-----Getting SAP Server details from configuration file------")

ashost = result_json['asHost']

sysnr = result_json['sysnr']

client = result_json['client']

user = result_json['user']

Decrypt the password to connect SAP.

print("------Decrypting SAP PWD------")

pwd = str.encode(result_json['sapPWD'])

key_result = container.get_blob_client(key).download_blob().readall()

fernet = Fernet(key_result)

decpwd = fernet.decrypt(pwd).decode()

decdbpwd = fernet.decrypt(dbpwd).decode()

Prepare connection string to connect the SAP server.

conn = Connection(ashost=ashost, sysnr=sysnr, client=client, user=user, passwd=decpwd)

print("------Connected SAP Successfully------")

Query SAP table using Remote function call RFC_READ_TABLE.

data = conn.call('RFC_READ_TABLE', QUERY_TABLE='KONV', DELIMITER='|', OPTIONS=options, FIELDS=['KNUMV', 'KPOSN', 'KSCHL', 'KWERT'], ROWSKIPS = rowskips, ROWCOUNT = ROWS_AT_A_TIME)

Write the data to Blob Storage in the form of a CSV file.

data_fields = data['DATA']

if not has_header:

data_names = data['FIELDS']

headers = [x['FIELDNAME'] for x in data_names]

for i in range (0, len(headers)):

column_name=headers[i]

if i == 0:

header_str = column_name

else:

header_str = header_str+"|"+column_name

csv_str = header_str

has_header = True

for row in data_fields:

csv_str=csv_str+'\n'+row['WA']

blob_client = blob_service_client_instance.get_blob_client(container='sapdata', blob='KONV.csv')

blob_client.upload_blob(csv_str, overwrite=True)

Data Extraction from SAP using Azure Data Factory and SAP connector for .Net

1. Download SAP connector for .Net from SAP website and install it on the virtual machine which can access the SAP server. This is required to establish the connectivity between SAP and Azure Data Factory through integration runtime.

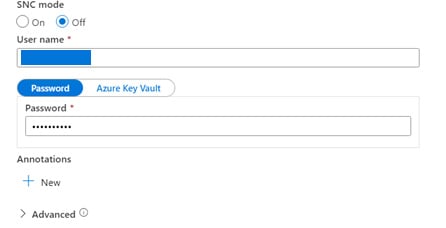

2. Create a Linked Service in Azure Data Factory with all the required connection details as shown below.

Data Extraction from SAP 12 | Nitor Infotech

Data Extraction from SAP 13 | Nitor Infotech

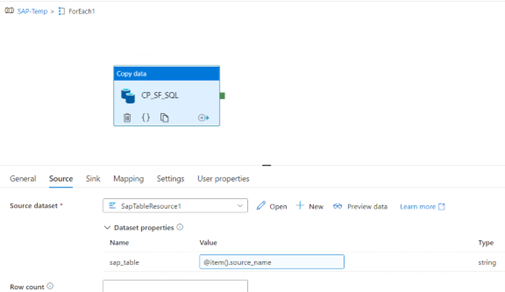

3. Copy activity to copy the data from the SAP table in Azure Data Factory.

Data Extraction from SAP 14 | Nitor Infotech

Preview the result of any of the SAP tables before copying to any of the destinations.

Data Extraction from SAP 15 | Nitor Infotech

Shown below is the screenshot for the sample data from the SAP table.

Data Extraction from SAP 16 | Nitor Infotech

There you have it! These are the ways to extract data from SAP using NetWeaver SDK + Python and the SAP connector for .Net + Azure Data factory.
